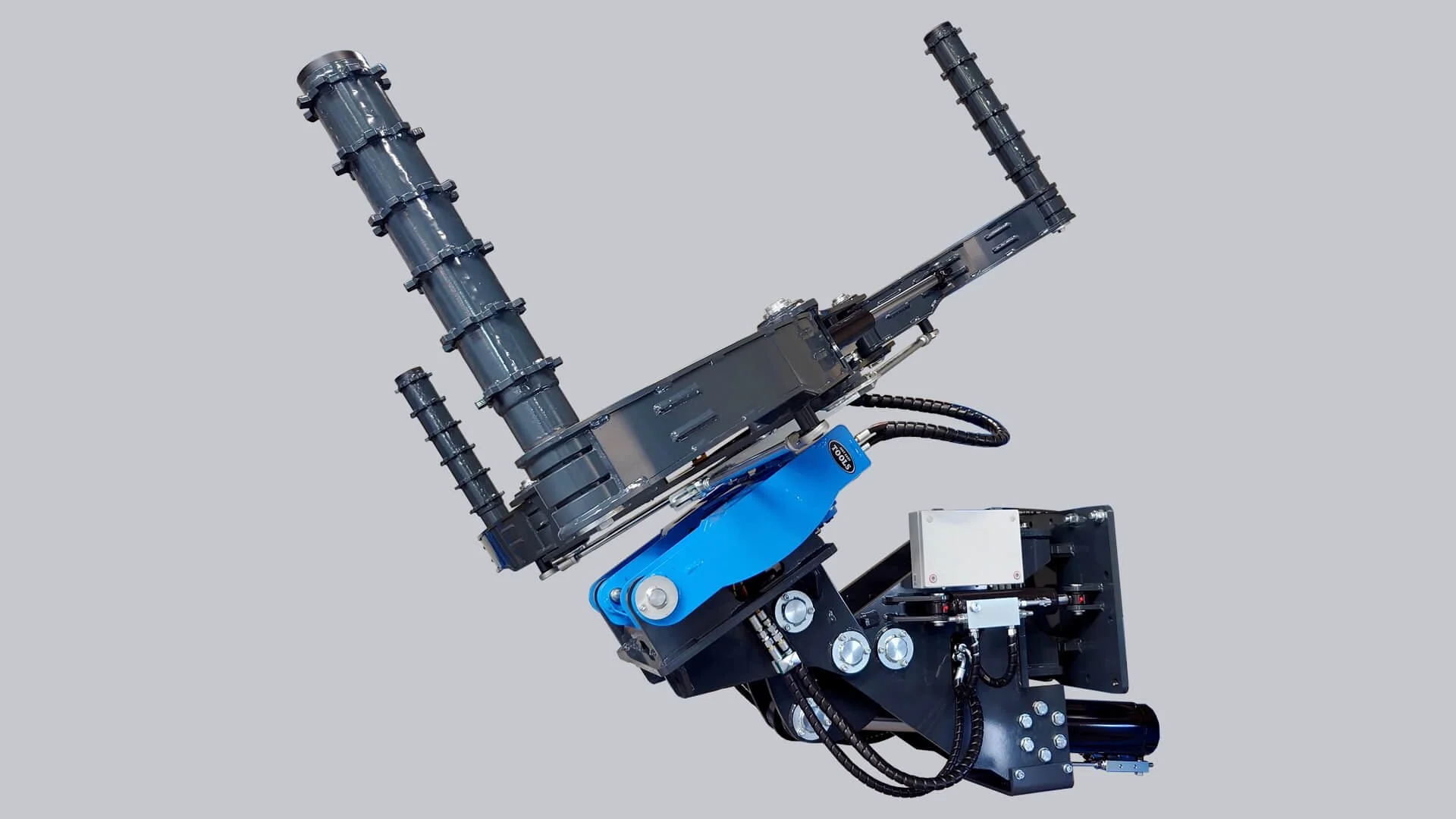

Easy Gripper Crane Module D
Professional tools for mobile tyre service with truck cranes
Unique 3-point grip
Precise rotation +/-25°
Horizontal/vertical tilt +/-80°
Horizontal Slewing +/-10°
Tools for safe handling of Side Rings and Bead Seat Bands
Prevent damage to tyres, rims, and equipment
Customization available
Save time. Improve safety.
Mobile and on-site service of OTR and AGRO tyres
The Easy Gripper product range is designed to help tyre professionals in a multitude of conditions and situations.
The Easy Gripper Crane Module D, installed on a truck crane, provides optimal flexibility for drivers, allowing them to transport and mount large OTR or AGRO tyres and wheels - even single-handedly.
The Easy Gripper Crane Module D enhances both speed and safety in tyre handling, with its unique 3-point grip providing maximum control and stability. The combination of the precise rotation of the Easy Gripper, together with the tilt and slewing functions of the Crane Module D, significantly reduces accident risks and prevents damage to tyres, rims, and equipment.
Capability
Configured with an Easy Gripper 2160:
With a gripping range of Ø700 - 2.160 mm (28 - 85”) and a lifting capacity of 1 ton (2.200 lbs), the Easy Gripper 2160 is developed to handle AGRO and light OTR tyres.
Configured with an Easy Gripper 2400-2T:
With a gripping range of Ø850 - 2.400 mm (34 - 94”) and a lifting capacity of 2 ton (4.400 lbs), the Easy Gripper 2400-2T can handle tyres up to 37.25R35. When handling full wheel assemblies as inside duals, the Gripper handles up to 24.00R35.
Standard features
Handles both the Easy Gripper 2160 and Easy Gripper 2400-2T
Unique and safe 3-point grip
Prevents accidents.
Prevents deformation of tyres.
Prevents damages to tyres, rims, and equipment.
Precise rotation +/-25°
Horizontal/vertical tilt +/-80°
Horizontal Slewing +/-10°
Control system designed to be integrated with existing crane control system
Optional accessories
Camera system for optimal view
With automatic IR function in insufficient lighting conditions.
LED working light (2400-2T only)
Easy shift of gripping pipes for various purposes
Flat top arm for limited tyre clearance.
Telescopic pipes for long reach, to provide room for the tyre fitters and for dual tyre handling.Tools for safe handling of side rings and bead seat bands
Special designed Ring Handling Tools for handling multi-piece rim wheels. With the Ring Handling Tools, the tyre technicians can grip, hold, press, or place tyres, rims, side rings and bead seat bands as needed
- a major improvement of safety and efficiency!Customization on request
Video
Downloads
Contact us
Simplifies alignment
The integrated +/-80° horizontal/vertical tilt, along with the +/-10° horizontal slewing function in the Crane Module D, simplifies the alignment of the Easy Gripper with the tyre and hub.
Easy integration of control
The control system of the Easy Gripper Crane Module D is designed for easy integration with the existing crane’s remote control.
Solves limited clearance
Limited clearance around tyres and fenders is easily addressed by replacing the top gripping pipe with a flat top arm, achieved by loosening a single bolt, while the two bottom pipes support the tyre beneath the fender.
Quick conversion of crane
Installed with a crane-specific insert, the Easy Gripper Crane Module D allows for easy mount/dismount, making it possible to quickly convert the truck crane to its standard form for other purposes than tyre handling.
Technical specifications
Easy Gripper 2160:
Gripping diameter: 700 - 2.160 mm (28 - 85”)
Standard pipes: Ø89 x 600 mm (3.5 x 24”)
Lifting capacity: 1.000 kg (2.200 lbs)
Weight: 1.090 kg (2.403 lbs)
Easy Gripper 2400-2T:
Gripping diameter: 850 - 2.400 mm (34 - 94”)
Standard pipes: Ø115 x 650 mm (4.5 x 26”)
Lifting capacity: 2.000 kg (4.400 lbs)
Weight: 1.295 kg (2.855 lbs)
Technical Requirements:
Insert for mounting: Crane specific
Lifting capacity: Individual calculation
Electrical supply: 24 V
Hydraulic flow max: 50 L/min (13.2 gal)
Hydraulic max. presure: 180bar
One hydraulic circuit plus an electrical cable available at the end of the crane boom with 5 individual wires:
One wire with constant 24 Vdc.
Three wires for activating functions valves (slewing, rotating, and gripping)
One common ground wire.
Supporting tools and accessories
Even though the Easy Gripper is an incredible tyre handler / tyre manipulator, it can not do the entire tyre service job on it’s own. Therefore, we offer you following high-quality tools and accessories to support other parts of the tyre service processes.
