Easy Stacker 1600

Developed for optimal handling of small OTR and AGRO tyres

The Easy Stacker 1600 is designed to handle stacks of small OTR and AGRO tyres, military, industrial and commercial truck tyres, with a firm grip and with movements optimized to operate in tight space in warehouses, production areas and in trucks, trailers and containers.

The Easy Stacker 1600 takes over most manual processes of lifting and moving large tyres – reducing strain and risks for the operator significantly.

Capability

With a gripping range of Ø750-1.600 mm (30-63”) a grip length of 2.100 mm (82”) and a lifting capacity of 1.500 kg (3.300 lbs). With the 90° tilt module rows of tyres can be stacked, and the design enables loading and unloading of containers and of trailers.

Standard features

• 90° tilt, horizontal to vertical

• Stacking of tyres
  Grip a line of small OTR and AGRO tyres on the floor and tilt them up to vertical position. Place stacks on stacks to use the height of the warehouse and double the capacity without any shelf system and without any need for pallets.

• Can grip piles of tyres with limited space around the pile
  In order to use the space effectively and to operate in trucks, trailers and containers.

• Loading and unloading of trailers etc.
  Can be performed from just one side with the reach of the Stacker. Can be performed by just one man and without any physical and stressful work.

• Quick Shift Module

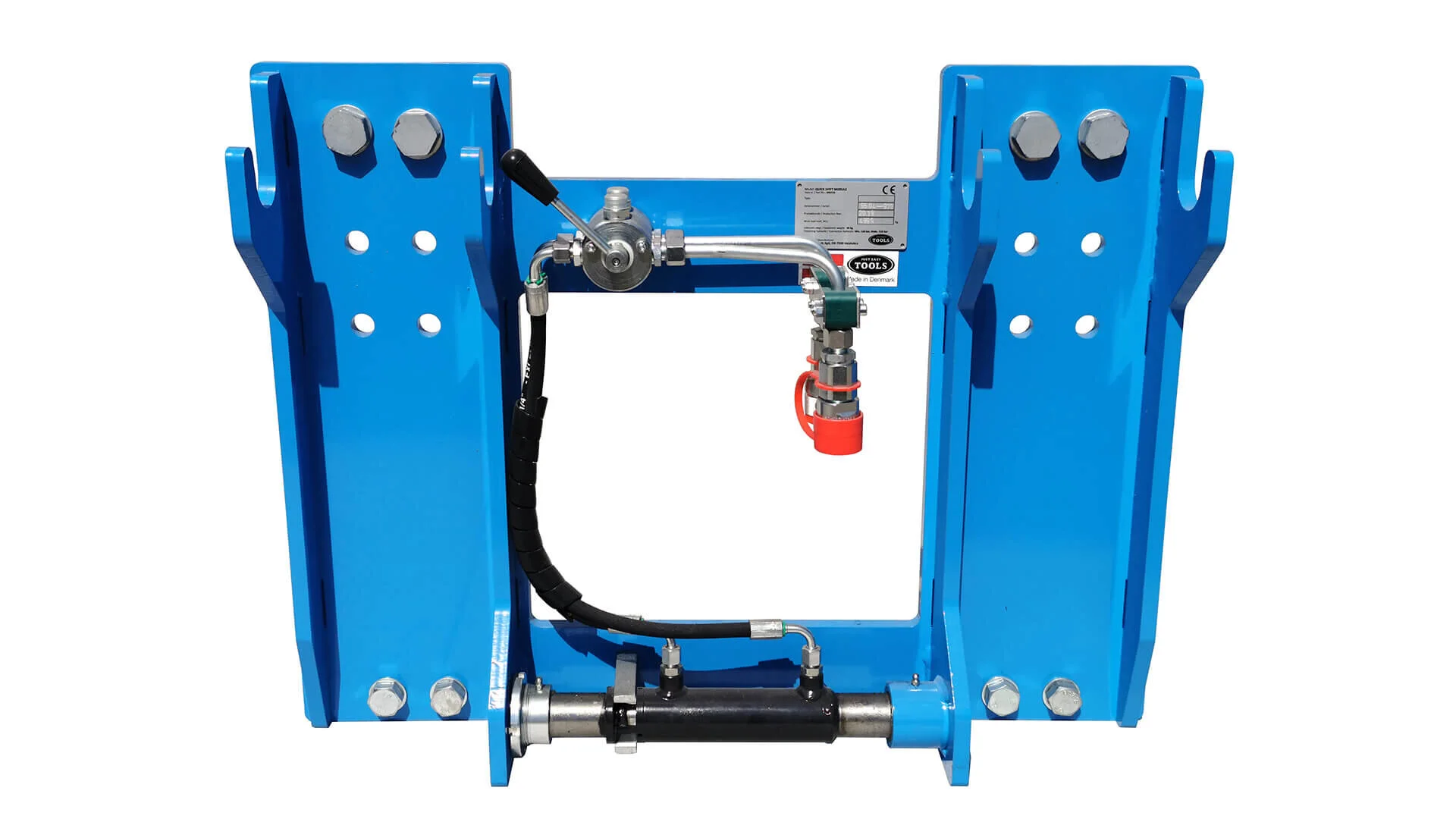

  The Quick Shift Module is a standard and integrated part of the Easy Stacker. It is mounted on the forklift, and the Easy Stacker is then hooked on to this module. By using the Quick Shift Module, the Stacker can easily be hooked on and off.

Optional accessories

• Fork Module
  The Fork Module is designed to be hooked on to the Quick Shift Module, and makes quick shift between Stacker and forklift forks easy.

• Hydraulic Quick Shift

  The quick shift can be speeded up to less than half a minute by using a hydraulic multi connection. Instead of changing two hydraulic hoses by screw couplings, the hydraulic can be changed by one handle in few seconds.

Video

Downloads

Contact us

Tyre Manufacturers

Where the logistic is not fully automated, the Easy Stacker can be a very useful and effective tool to use in production areas, warehouses and shipping departments.

Tyre Retreaders

Stacking, loading, unloading, internal logistic and effective use of storing facilities. Compared to manual handling, the Stacker can here make very profitable improvements and lift your handling procedures to a higher level.

Tyre Distributors / Dealers

Loading and unloading trailers and containers. Effective stacking and optimize use of warehouse and other storage facilities with or without pallets. Internal transportation with a safe grip of the tyres

OEM / Truck Manufacturers

Unloading truck tyres. Place and organize effectively in stock with or without pallets. Move to assembly lines with a safe grip.

Technical specifications

Technical Data

Lifting capacity: 1.500 kg (3.300 lbs)
Tyre diameter: 750 - 1.600 mm (30-63”)
Grip length: 2.100 mm (82”)
Electrical supply: 12/24 V / min 10A
Hydraulic: 1 double acting hydraulic valve
Pressure min-max: 150 - 250 bar (2.175-3.626 psi)
Return pressure: max. 10 bar (145 psi)
Flow: max. 50 l/min. (13 gal/min.)
Lifting height: Forklift specific
Tilt, horizontal to vertical: 90°
Net weight: 1.210 kg (2.662 lbs)
Attachment: ISO/FEM/ITA Class 3 or 4

Explanatory description

(A) CoG Machine: 960 mm (38”)
(B) CoG Load: 1.900 mm (75”)
(C) Height: 2.100 mm (83”)
